Display scaling is extremely nuanced on modern, multi-monitor desktop environments. As it turns out, making your game or app scale consistently across various displays and operating system is non-trivial and can require additional information from the engine that Godot does not provide.

Godot 4 actually provides a number of helpful scaling features right out of the box which solve simple scaling issues and can be easily configured to work well for pixel art games. Unfortunately, if you want a high degree of customization over scaling in your project, you'll quickly run into some of Godot's limitations and known issues:

• ❌ Inaccurate/unreliable display scale factor detection.
• ❌ Blurry rendering on a secondary monitor in Windows if the secondary monitor has a higher scale factor than the primary monitor (can't be worked around, unfortunately — just tell your players not to do this).
• ❌ Theme scale can't be configured at runtime.

A simple google search for "godot 4 display scaling reddit" returns pages and pages of posts by developers asking for help with various scaling issues. The Godot team is very aware of the open issues related to scaling, themes, and sizing. We've always been very optimistic about Godot's future and we expect that many of these issues will be fixed over the next year or two.

In the meantime, we've built some tools that will help you workaround some of Godot's current limitations on macOS and Windows. This allows you to ship your project today without having to wait for the larger issues to be addressed. Here's what we'll be focusing on:

• ✅ Scaling UI so that it takes up the same amount of physical pixels, regardless of the user's display scale. This is generally desired for games, as you can always build a custom scale factor on top of that once you've corrected for the current display settings.

Once you can do that, it's easy to offer different scaling behaviors that leverage the corrected display scale:

• ✅ Make it easy to scale the UI proportionally to the window (useful for games that only run fullscreen, have very precise UI layout requirements, or are only intended to support a single resolution).
• ✅ Make it easy to keep the UI a fixed size while scaling the game itself when the window is resized (useful for games and apps which want to run well when windowed).

Both of these behaviors work well when running fullscreen or windowed. Neither uses Godot's Viewport scaling, either: they both render the UI directly to the final, scaled size, allowing mipmaps to be respected and enabling a crisp, beautiful user interface.

The Ideal Resolution​

If you've seen any posts asking for help about display scaling with Godot, you've probably read answers posted by Calinou, a Godot contributor with extensive knowledge of how resolutions and scaling are handled. Calinou also wrote the multiple resolutions guide.

Calinou generally recommends defining a fairly high base resolution for your game, such as 4K, and then scaling it down for lower resolution screens. Developers should enable mipmaps when importing high resolution UI art to avoid rendering artifacts and improve rendering efficiency on various screen sizes.

From now on, we'll assume that you're designing all of your UI art for such a maximum-supported resolution. You can refer to this as the base resolution, theme design resolution, or ideal resolution — you get the idea.

When designing high resolution UI assets, make sure they appear large enough to be be understood and enjoyed by the player if the game were to run at your base resolution.

Virtual Desktop Coordinates​

When you call DisplayServer.ScreenGetSize(GetWindow().CurrentScreen) in Godot, you get Godot's understanding of the logical screen resolution, not necessarily the display's actual native resolution.

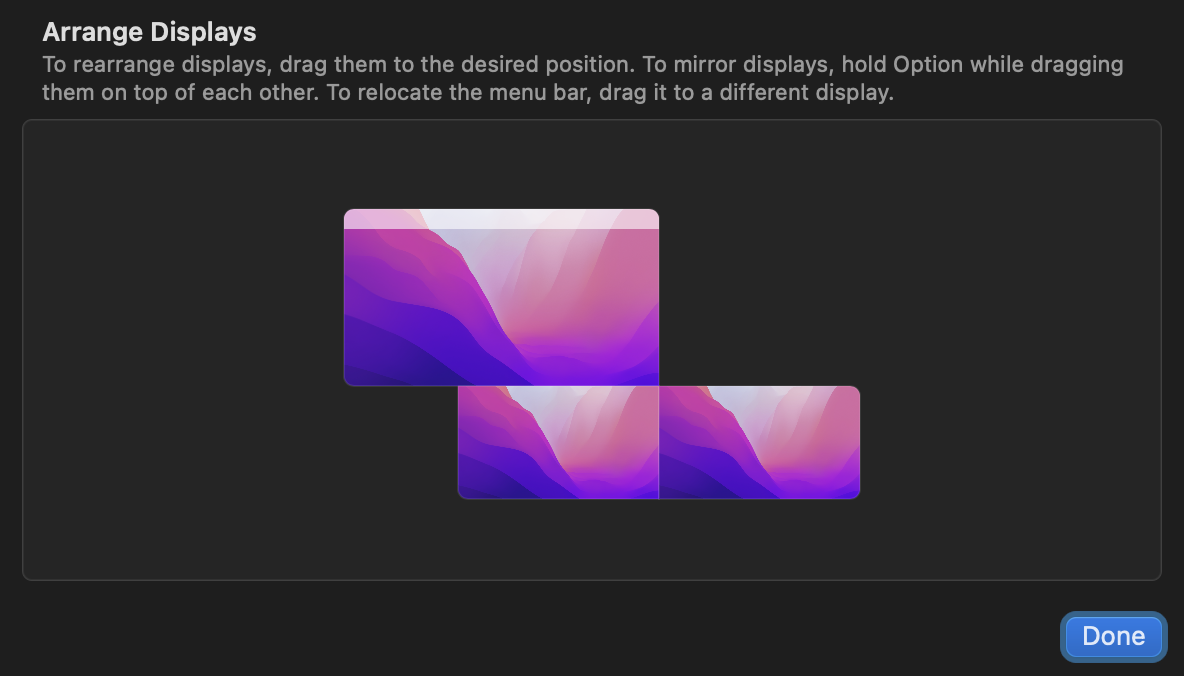

To understand what's happening, it's important to understand what virtual desktop coordinates are. Microsoft's Win32 developer documentation sums it up quite nicely:

The bounding rectangle of all the monitors is the virtual screen. — Microsoft

A Brief History​

Back when the iPhone came out, it wasn't uncommon to hardcode UI coordinates for its 320x480 screen. There was the one preordained screen size and we all accepted it.

Later, the iPhone 4 introduced a retina screen that had twice the amount of pixels in each dimension (640x960). Rather than break everyone's hardcoded app, they made iOS tell apps that the screen was still 320x480. Under the hood, iOS doubled the display back-buffer size. Such a pseudo-resolution that differs from the actual native resolution is an example of "logical resolution." At the time, it was a mercy — but now it might be considered criminal.

As phones kept coming out, developers soon realized that screen sizes would be changing constantly. Modern UI frameworks arose that were built around responsive design with horizontal and vertical container systems. Developers were told "not to worry" about actual native resolutions and just make their apps adaptable. Apps were (and still are) instructed to use multiple sizes of bitmap graphics to let the operating system pick the best one for the current screen size.

...and then, there's stuff made with game engines. Games and graphically intense applications are typically forced to work at a slightly lower level of abstraction than most apps for the sake of performance. Games also tend to be highly artistic and use a lot of raster graphics, making it harder to create adaptable user interfaces.

So, given all these factors, you can imagine how frustrating it is as a game developer to have an operating system that lies to you about the resolution of the screen, encourages you to make adaptable interfaces, and then won't give you the actual native screen resolution or scale factor. Chances are you don't have to imagine it if you're reading this.

Today, operating systems use virtual desktop coordinates to position windows across monitors and operate independently of display scale factors. And they all do it differently, too.

Scale Factors​

Modern versions of macOS and Windows allow you to set a scale factor for each display. The scale factor determines how big UI elements appear on screen. On most systems and displays, this is typically between 100% and 300%. Before scale factors were well implemented in operating systems, we used to have to lower the screen resolution (the output signal from the operating system to the monitor) if we wanted to make everything bigger (which also made everything look blurry).

Windows Scaling​

Modern versions of Windows make scaling pretty simple. They give you a dropdown in under Display Settings that allow you to pick a percentage. It really is that simple.

macOS Scaling​

macOS, on the other hand, likes to burden users with knowledge of past resolutions. Instead of just giving you a percentage like a sane, ordinary operating system, they tell you what your choice would resemble if you were to still living in a world without modern screens packed full of pixels.

Notice how it says using a scaled resolution can impact performance? That's only barely true: they've done tests and it only affects performance by about 1-3%. So scale away!

You can see that I've selected the "More Space" option in the picture above, which indicates a resolution of 1800x1169. But that's not actually the native resolution of the Macbook Pro I own. It's 3024x1964. If you divide the native resolution by the scaled resolution, you get a scale factor of 1.68, or 168%. This is the scale factor that macOS uses to determine how big to make UI elements on screen. Because it's not an integer, macOS is warning me that it might be a little more expensive to compute. But it's a non-issue on today's hardware.

Displaying Independent of Scaling​

If you're making an app with Godot or want to make a game that offers a high degree of flexibility or control over presentation, you'll likely want to display your game window so that it takes up the same amount of physical pixels regardless of what the player has set their display scale to.

This isn't a silver bullet, but it's a good approach for most desktop games and will tend to work well on a wide variety of monitors, despite the fact that operating systems really don't want you to think about native resolutions. For applications with lots of UI elements made out of raster graphics (like most games), knowing the actual pixel resolution is extremely helpful because it allows the application to make better decisions about rendering the UI in a way that preserves its crispness.

Unfortunately, it's not possible to render independently of display scale factors without more information than what Godot is currently able to provide. To make those computations, you need the display's scale factor and native resolution.

Godot does provide the monitor's scale on macOS, but it is not the scale factor set by the user in the display preferences. Instead, it's the retina integer screen multiplier — which is useful, but not quite enough information by itself.

On Windows, Godot allows you to get the DPI of a display — but it's often wrong in multi-monitor environments due to Godot not implementing per-monitor DPI awareness yet. This results in getting the DPI for whatever display is the primary display, regardless of which display you asked for.

Likewise, whenever you ask Godot for the screen resolution on macOS or Windows, it returns the logical screen resolution in virtual desktop coordinates scaled by what it thinks the scale factor is, complicating matters further. On Windows, if you're on a secondary monitor with a different scale factor than the primary monitor, you end up a liminal coordinate space where none of the values make sense.

Despite these limitations, Godot provides several easy-to-use "knobs" for adjusting scaling in a game: window.ContentScaleFactor, window.Size, project viewport and window size overrides, along with the various aspect and scale mode settings. It's still a bit of a hassle to get everything configured correctly, though.

Finding the Native Resolution & Scale Factor​

For the last few months, I've been hard at work developing new utilities to make it possible to get a display's native resolution and the operating system's scale factor for that display, as set by the user. And yes, it took months to figure all this out.

We can gather this accurate information on Windows 10+ and macOS by using Chickensoft's new Platform package. Platform is a set of native extensions for Godot which invoke Win32 API's on Windows and CoreGraphics on macOS to determine the actual scale factor and native resolution of the monitor that a Godot Window is on.

chickensoft-games/

Platform

Platform-specific native extensions for Godot, written in C# and compiled ahead ahead-of-time (AOT).

But, you probably won't ever need to use Platform directly. It's used by the new, higher level GameTools package which will invoke it for you, help you collect the scaling information, and apply it to your game window.

chickensoft-games/

GameTools

A collection of tools for accelerating Godot + C# game development, including loading, feature tags, and high-DPI utilities.

Interestingly enough, neither operating system makes it very easy to determine the native resolution and scale factor, resulting in quite a lot of code.

Setting Up a Godot Project​

To take advantage of the new tools, we'll need to configure a few properties in our Godot project. Once you've decided on a base resolution for your game (hint: it should probably be 4K), you'll need to update the theme base scale in your Godot project settings.

Setting the "Default Theme Scale" isn't an exact science and will depend on the font used in your theme and other art assets. The general rule of thumb is to think in multiples of Full HD (1920x1080). Working from FHD results in a value of baseResolution.Y / 1080, where baseResolution is the highest maximum resolution your assets can support without being upscaled (i.e., that design resolution we discussed above).

If your base resolution is 3840x2160, the default theme scale should be 2160 / 1080, or just 2.

Godot generates the theme at this scale when your program is executed.

To ensure crisp font rendering, be sure to check the options for "Default Font Multichannel Signed Distance Field" and "Default Font Generate Mipmaps" located near the "Default Theme Scale" setting.

You'll also want to set the viewport size and window width and height overrides. Once again, set the window size based on how large you would want it to show up if it was on a full HD 1920x1080 FHD monitor. The Chickensoft scaling tools will take this into account and resize your game so that it appears proportionally sized on other monitors with different resolutions.

For everything to work, you also need to leave "Allow hiDPI" checked in the project settings (display/window/dpi/allow_hidpi). It's checked by default.

Godot has a setting for which screen the game should start on. I like to set it to the screen with mouse focus, as it makes it easy to test on multiple monitors.

When you're done, your project.godot file should have these settings set with whatever values you chose.

[display]

window/size/viewport_width=720
window/size/viewport_height=720
window/size/initial_position_type=3
window/size/window_width_override=1280
window/size/window_height_override=720

[gui]

theme/default_theme_scale=2.0
theme/default_font_multichannel_signed_distance_field=true
theme/default_font_generate_mipmaps=true

If all this sounds like too much trouble, you can just spin up a new project with the Chickensoft GodotGame template. It's already got all this configured for you out-of-the-box!

chickensoft-games/

GodotGame

C# game template for Godot 4 with debug launch configurations, testing (locally and on CI/CD), code coverage, dependency update checks, and spell check working out-of-the-box!

High-Level Scaling Behaviors​

Now that your project is set up, you can use Chickensoft's high-level scaling behaviors API from GameTools. It's just a single line of code that allows you to determine how your app or game should be presented and scaled.

public override void _Ready() {
  GetWindow().LookGood(
    WindowScaleBehavior.UIFixed, // or UIProportional
    Display.UHD4k // your theme design resolution (such as 4K)
  );
}

Better yet, when you're ready to enter full-screen, just call it again:

  GetWindow().LookGood(
    WindowScaleBehavior.UIFixed,
    Display.UHD4k,
    isFullscreen: true
  );

Fixed UI Scaling​

The Fixed UI scaling leaves your UI scale alone. Whether or not you scale the game behind it is up to you (you'll need to setup a SubViewport if you want to scale the game independently of the UI).

UI is rendered at the proper physical pixel resolution in the framebuffer by using Godot's Disabled content scaling mode. This ensures crisp, clean UI at all sizes. (Except on Windows if and only if the primary monitor has a lower scale factor than the monitor you're on — but there's nothing we can do about that.)

Fixed UI scaling determines the size the UI should be at full screen and then just leaves it that size. You can configure the minimum window size as a ratio of the screen to keep your window from getting too small.

// Don't allow the window to be less than 50% of either screen dimension,
// and try to make sure the resulting size uses the aspect ratio of the
// window size set in the project settings.
GetWindow().LookGood(
  WindowScaleBehavior.UIFixed,
  BaseResolution,
  isFullscreen: _isFullscreen,
  minWindowedSize: 0.5f,
  useProjectAspectRatio: true
);

Note that you can always take the resulting content scale factor applied by LookGood and multiply it by your own UI scaling factor to offer custom scaling which is only applied after correcting for the display the window is on. Pretty nifty! This can allow you to offer a custom scale factor slider in your game so that users can further tune the UI size.

var myScaleFactor = 1.25f;
GetWindow().ContentScaleFactor *= myScaleFactor;

Proportional UI Scaling​

The Proportional UI scaling behavior mode scales your UI in proportion to the window.

Proportional UI scaling first determines the size the UI should be at full screen by calculating the scale of the display that the window is on and scaling correctly based on your design resolution and the native resolution of the screen. It does this using a bunch of math that resembles what you do when you're first learning fractions.

UI is rendered either with Godot's Disabled or CanvasItems scaling mode, depending on whether or not you're in full screen. This preserves UI crispness at all sizes, too.

Sizing Things Up​

There's probably a whole lot more that can be said about display scaling, but this will have to do for now. It's already taken up months of free time.

Display scaling is something you tend to think about twice: once at the start of your project, and once at the end when it's time to polish and ship.

Now that this is pretty well buttoned up, we plan on filing a proposal for Godot regarding access to the actual native resolution and scale factor to eliminate the need for packages like Platform. We hope that the native code in Platform can even serve as a helpful example for how it might be done. It will likely take some time to get all that done in the engine itself, though, since Godot has other display scaling issues that may need to be addressed first or as part of that effort. In the meantime, this gets you shipping your project today.

We believe that providing opinionated solutions to difficult, complex technical issues like display scaling can really help AA game studios and indies get their games polished and ready to go in a lot less time. And we do that because we want to live in a world where those games are made in Godot.
